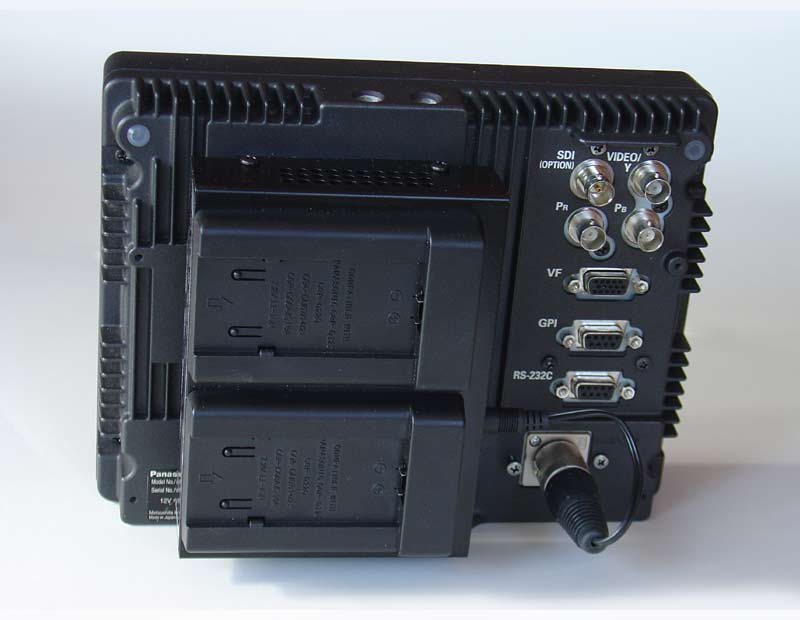

Standard "Gold
Mount" configuration
click to enlarge
click to enlarge

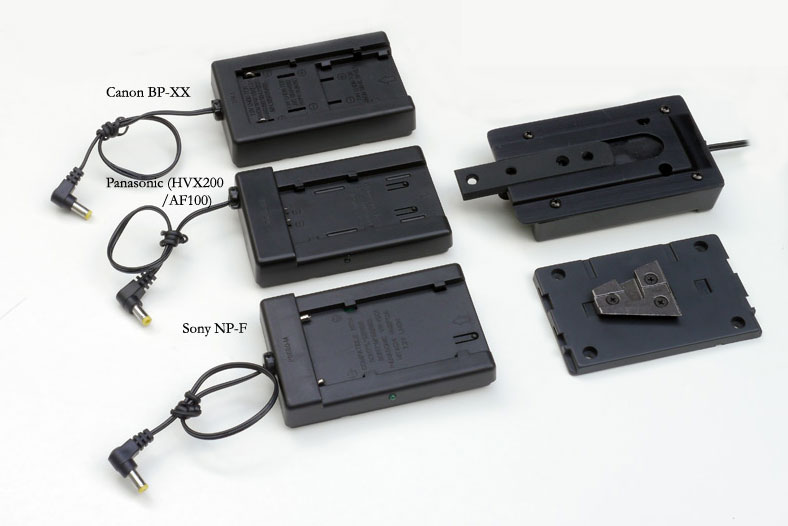

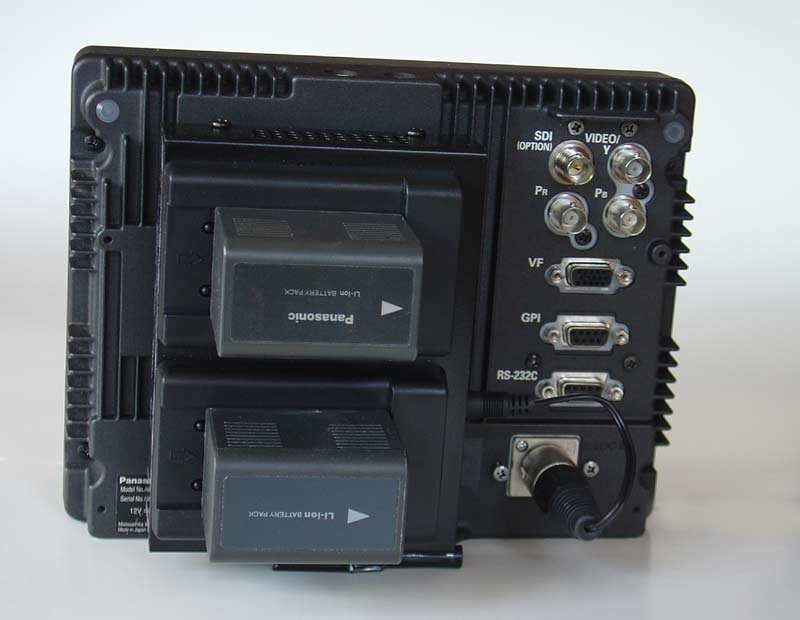

Common 7.2V
batteries Sony "L", Panasonic "CGR", Canon "BP"
click to enlarge
click to enlarge

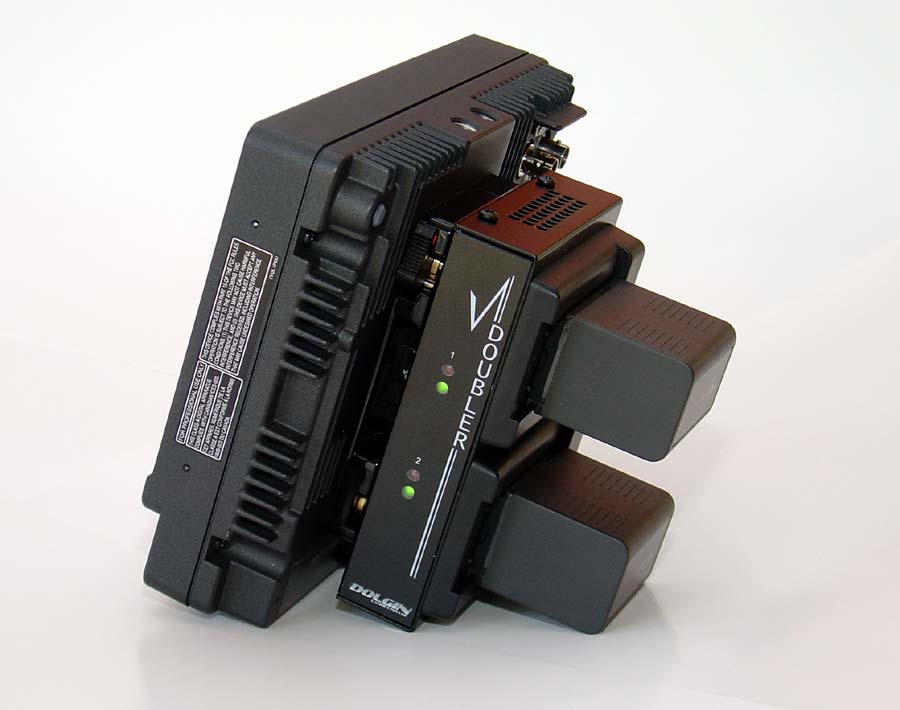

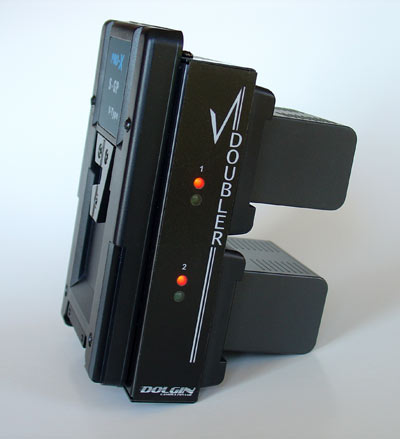

Voltage monitor
green/red LEDs
click to enlarge
click to enlarge
Features
-
Accepts a pair of common 7.2V Panasonic, Sony, Canon batteries
-
Produces 14.4V DC output to power portable monitors, 14.4V cameras, or any other 12-16V accessories
-
Voltage monitor LEDs
-
XLR 4 pin power output
-
Anton Bauer Gold/V- Mount ready - plugs in on the back of the monitor, camera or can be used separately, with a longer power cable
-

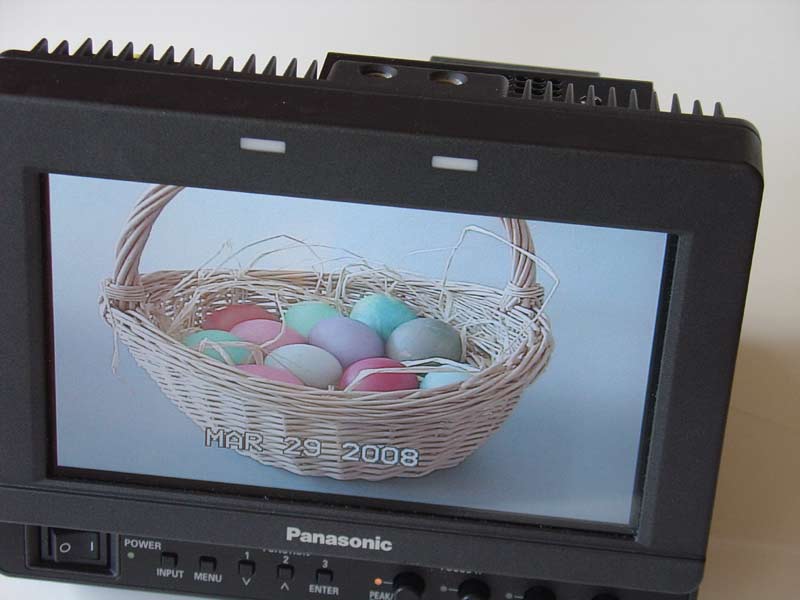

Powers a BT-LH80W Panasonic monitor for 4-6 hours using 5400 mah batteries.
-
Small lightweight package 14 oz.
-
Warranty 2 years parts and labor
No risk - if you don't like it, send it back within 2 weeks for a full refund.
Run time (approximate)
Weight
Monitor
or camera 15W
5400 mAh batteries (pair) - 5 hours
7800 mAh batteries (pair) - 7.5 hours
4000 mAh 14.4V battery (one Sony BP-U60) - 4 hours
5400 mAh batteries (pair) - 6.5 h
7800 mAh batteries (pair) - 9 hours
4000 mAh 14.4V battery (one Sony BP-U60) - 5 hours
Adapter
only - 14oz
- add 2 2800mAh batteries as shown 1lb 10oz
- add 2 5400mAh batteries
1lb 15oz

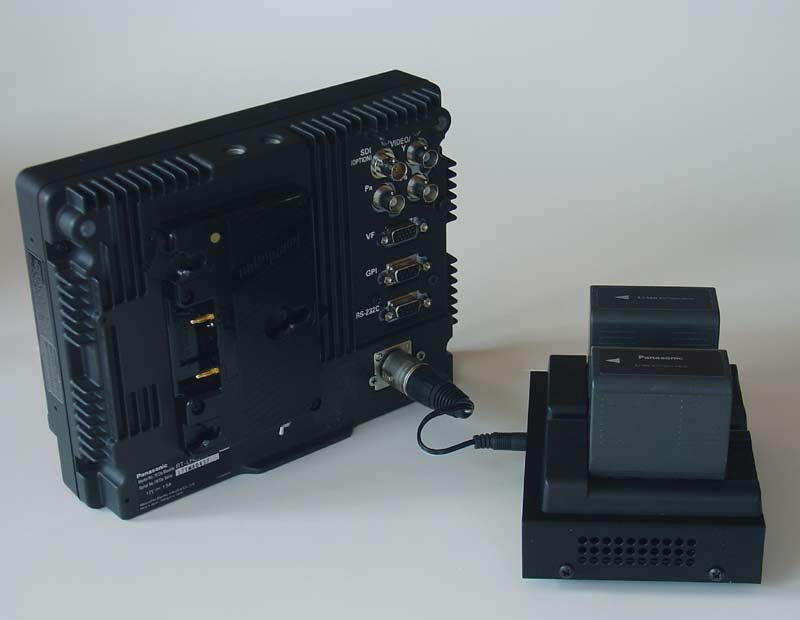

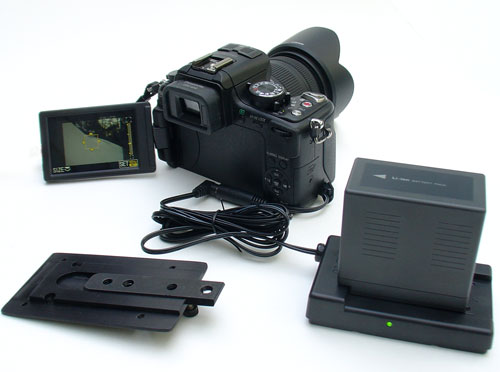

Stand alone
configuration; use longer cable as needed
click to enlarge
click to enlarge
Work in progress

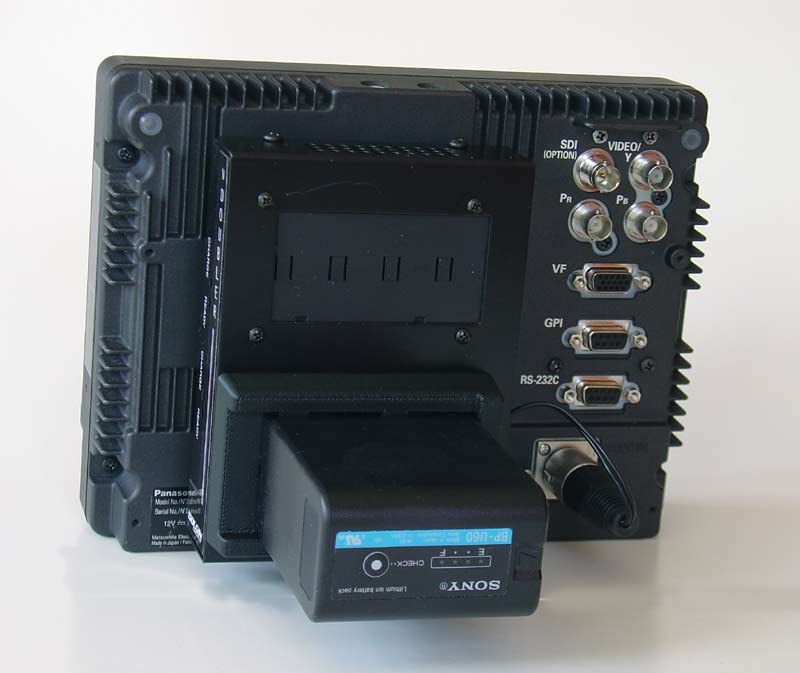

• Sony BP-U30/U60 configuration;
hot swappable; 8-10 hours run time on a pair of BP-U60.
• D-Tap Power Tap Connector
Power
Kit - complete power solution
vDOUBLER plus 2 high capacity batteries
from
$284
Click to enlarge

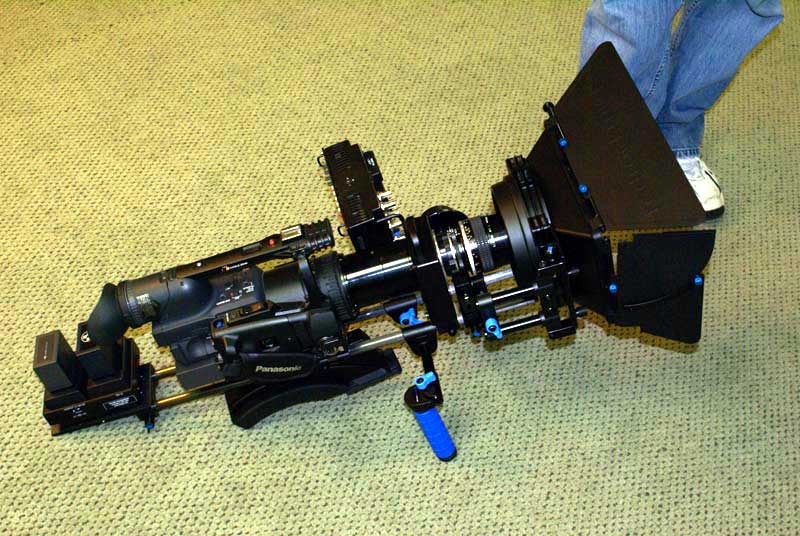

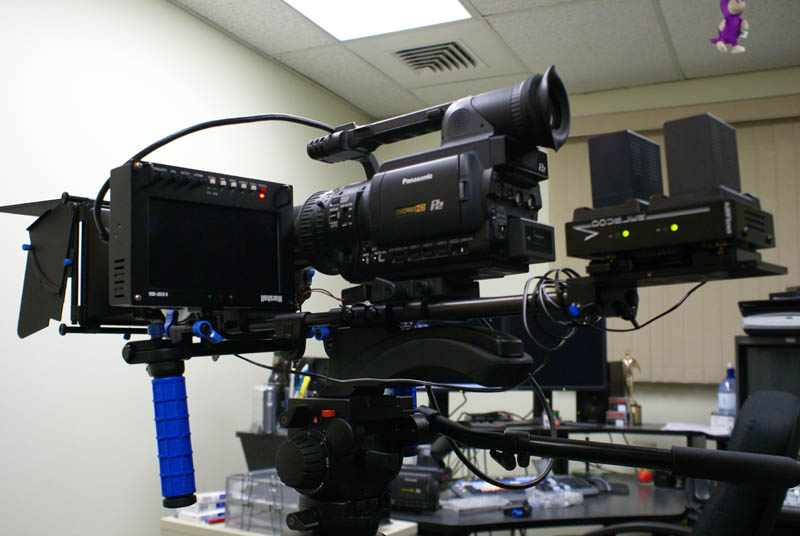

Pics from our customer
